Fiberglass Building Panel System





COMPOSOLITEŽ is an advanced composite building panel system suitable for major load bearing structural applications. The system combines manufacturing simplicity with an almost unlimited number of configurations.



Features
  • Corrosion Resistant
  • Strong
  • Lightweight
  • Low Conductivity
  • Easy To Maintain
  • Cost Effective
  • Easy To Install
  • Interlocking Joints

System Design & Components

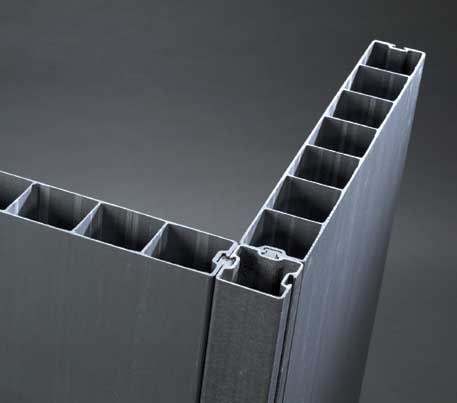

The modular construction system consists of six interlocking components. The main component is a 3" thick x 24" wide open-ribbed building panel. 3-way and 45° connectors allow the system components to turn corners and facilitate the joining of walls or sides. Toggles lock panels and connectors together securely. For added flexibility, the system also includes a hanger and an end cap.

For permanent structures, joints between panels and connectors are bonded during assembly.

This uniquely designed system of interlocking components makes it possible to design fiberglass structures for a broad range of construction applications with an almost unlimited number of configurations.


COMPOSOLITEŽ structures can be designed in "kit form" and shipped flat to the job site. Typical applications include:
  • Buildings
  • Bridge Enclosure Systems
  • Cooling Towers (top-right)
  • Wastewater Covers (bottom-right)
  • Bridge Decks
  • Tank Covers
  • Platforms & Walkways
  • Cellular Enclosures


Materials of Construction

COMPOSOLITEŽ is available in standard polyester (green), polyester fire retardant (gray) or vinyl ester fire retardant (beige) resin systems. The standard fire retardant resins meet the requirements of Class 1 rating of 25 or less per ASTM E-84 and the self-extinguishing requirements of ASTM D-635. The resin contains a UV inhibitor and the composite includes a surface veil on all exposed surfaces for enhanced corrosion and UV protection.

Other resins and colors are available upon request.
