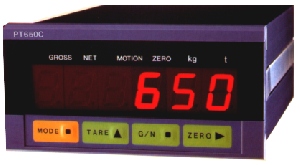

"PANEL METER" STYLE WEIGHT
INDICATOR
PT650C |
- Small size is ideal for panel mount
- Replaces other 1/8 DIN indicators such as Analogic
- Clear and stable LED display
- Fully digital calibration and function setting
- Rear jumper connection for function and calibration
setting protection
- Zero return range is selectable
- Keyboard functions can be remotely controlled through
serial connection.
- Conversion rate up to 20 times/sec
- Display update rate is selectable 1, 4, 8, 16 or 20
times/sec
- BCD output rate is selectable 4, 8, 16 or 20 times/sec
- Zero offset and span calibration can be carried out
individually
- Drives up to 4x350 ohm load cells
- "watchdog" circuit monitors and eliminates common
malfunctions caused by excessive noise
- Standard RS232 serial input/output port and four
setpoint outputs
- Optional analog and BCD outputs
- GREAT PRICES AND O.E.M. DEALS
|
SPECIFICATIONS
| Power Supply |
110V or 220V AC selectable, 50/60 Hz |
| Operating Temperature |
-5ºC to 50ºC (23ºF to 122ºF) |
| Load Cell Excitation |
10V DC, 150mA, 4 x 350
ohm load
cell |
| Input Sensitivity |
0.5µ V/D to 200µ V/D |
| Internal Resolution |
200,000 counts (max.) |
| Scale Range |
500 to 100,000 x 1, 2, 5, 10, 20, or 50
graduation size |
| Display |
13mm LED display (6 digits) |
| Display Update Rate |
1, 4,
8, 16 or 20 selectable |
| Standard RS232 Port |
bi-directional, 2.4, 4.8 or 9.6 kb, 7 data, even
parity,1 stop |
| Set Point Output |
Photo-coupler, NPN open-collector 80V DC max.
0.3A |
| Standard Measurement Units |
kg / t selectable, plus lb by stick-on
label |
| Size and Weight |
96mm W x 48mm H x 144mm D (1/8 DIN),
450g | |
|

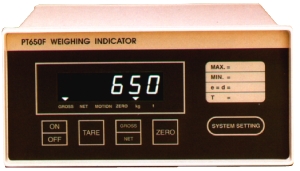

"REGULAR" STYLE WEIGHT
INDICATOR
PT650F |
- Standard 1/4 DIN size is ideal for panel mount, with
large easy to use buttons
- Interchangeable with other 1/4 DIN indicators
- Clear and stable LED display
- Fully digital calibration and function setting
- Rear jumper connection for function and calibration
setting protection
- Zero return range is selectable
- Keyboard functions can be remotely controlled through
serial connection.
- Conversion rate up to 20 times/sec
- Display update rate is selectable 1, 4, 8, 16 or 20
times/sec
- BCD output rate is selectable 4, 8, 16 or 20 times/sec
- Zero offset and span calibration can be carried out
individually
- Drives up to 4x350 ohm load cells
- "watchdog" circuit monitors and eliminates common
malfunctions caused by excessive noise
- Standard RS232 serial input/output port and four
setpoint outputs
- Optional analog and BCD outputs
- GREAT PRICES AND O.E.M. DEALS
|
SPECIFICATIONS
| Power Supply |
110V
or 220V AC selectable, 50/60 Hz |
| Operating Temperature |
-5ºC
to 50ºC (23ºF to 122ºF) |
| Load
Cell Excitation |
10V
DC, 280mA, 8 x 350 ohm load cell |
| Input Sensitivity |
0.5µ
V/D to 200µ V/D |
| Internal Resolution |
200,000 counts (max.) |
| Scale Range |
500
to 100,000 x 1, 2, 5, 10, 20, or 50 graduation
size |
| Display |
13mm
fluorescent display (6 digits) |
| Display Update Rate |
1, 4, 8, 16
or 20 selectable |
| Standard RS232 Port |
bi-directional, 2.4, 4.8 or 9.6 kb, 7 data, even
parity,1 stop |
| Set
Point Output |
Photo-coupler, NPN open-collector 80V DC max.
0.3A |
| Standard Measurement Units |
kg /
t selectable, plus lb by stick-on label |
| Size
and Weight |
198mm W x 96mm H x 200mm D (1/4 DIN), 2
kg |
|

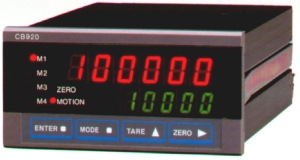

FOUR INGREDIENT MINIATURE
BATCHING CONTROLLER
CB920 |
- Small size is ideal for panel mount
- The smallest batching controller, panel size is only
96mm x 48mm, replaces other 1/8 DIN indicators
- Dual display-showing both gross and net weight
simultaneously
- Weight indicator integrated with setpoint controller
- Provides complete material batching control function
- Controls up to 4 different materials
- All setpoints are keyed-in through front panel switches
and stored in internal memory
- Automatic zero tracking
- Automatic tare by push button
- Coarse feed, fine feed and freefall compensation
- Digital calibration
- Batch report printout through RS232 port
- Conversion rate up to 120 times/sec
- Setpoint and system data can be input via serial port
- Tolerance checking
- Discharge control
- Optional BCD output
- GREAT PRICES AND O.E.M. DEALS
|
SPECIFICATIONS
| Power Supply |
110V
or 220V AC selectable, 50/60 Hz |
| Operating Temperature |
-5ºC
to 50ºC (23ºF to 122ºF) |
| Load
Cell Excitation |
10V
DC, 150mA, 4 x 350 ohm load cell |
| Input Sensitivity |
0.5µ
V/D to 200µ V/D |
| Internal Resolution |
200,000 counts (max.) |
| Scale Range |
500
to 100,000 x 1, 2, 5, 10, 20, or 50 graduation
size |
| Display |
13mm
fluorescent display (6 digits) |
| Conversion rate |
120
times/sec. |
| Standard RS232 Port |
bi-directional, 2.4, 4.8 or 9.6 kb, 7 data, even
parity,1 stop |
| Control Outputs |
Photo-coupler, NPN open-collector 80V DC max.
0.3A |
| Size
and Weight |
96mm
W x 48mm H x 144mm D (1/8 DIN), 450
g |
|

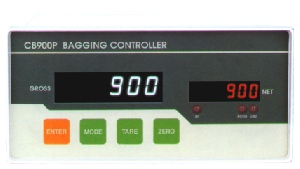

BAG AND BOX FILLING
CONTROLLER
CB900P |
- Standard 1/4 DIN size is ideal for panel mount, with
large easy to use buttons
- Interchangeable with other 1/4 DIN indicators
- All functions for 9 different common filling
applications included.
- Five sets of material target weights can be stored.
- "Watchdog" circuit monitors and eliminates common
malfunctions caused by excessive noise.
- Simple PLC logic control can be programmed by user.
- Batching and discharge time monitor.
- Accumulative total and batch number is provided.
- Coarse, fine or dribble batch control and free fall
compensation is provided
- Programmable fine control on delay timer
- Batch complete output and discharge complete output
timer
- Optional real time clock for report printing
- Separate comparison inhibit time for coarse and fine
feed
- Free fall compensation enable range can be changed by
operator
- Tare delay timer is programmable
- Quantity of tare readings to be taken for the average
tare value is programmable
- Quantity of setpoint values to be compared with the
actual weight is programmable
- Comprehensive software based on years of bagging
experience
- Batch reports printout through RS232 port
- Optional real-time clock and relay output board
- GREAT PRICES AND O.E.M. DEALS
|
SPECIFICATIONS
| Power Supply |
110V
or 220V AC selectable, 50/60 Hz |
| Operating Temperature |
-5ºC
to 50ºC (23ºF to 122ºF) |
| Load
Cell Excitation |
10V
DC, 120mA, 4 x 350 ohm load cell |
| Input Sensitivity |
0.5µ
V/D to 200µ V/D |
| Internal Resolution |
200,000 counts (max.) |
| Scale Range |
500
to 100,000 x 1, 2, 5, 10, 20, or 50 graduation
size |
| Display |
13mm
fluorescent (6 digits) plus 9mm red LED (6
digits) |
| Conversion rate |
120
times/sec. |
| Standard RS232 Port |
bi-directional, 2.4, 4.8 or 9.6 kb, 7 data, even
parity,1 stop |
| Control Inputs |
6
dry contact inputs (dc) |
| Control Outputs |
12
Photo-coupler, NPN open-collector 80V DC max.
0.3A |
| Optional relay board |
12
Dry contacts, 220 V, 1 A |
| Size
and Weight |
198mm W x 96mm H x 200mm D (1/4 DIN), 2
kg |
|
|
